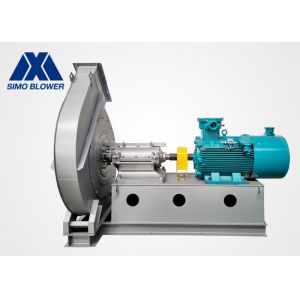

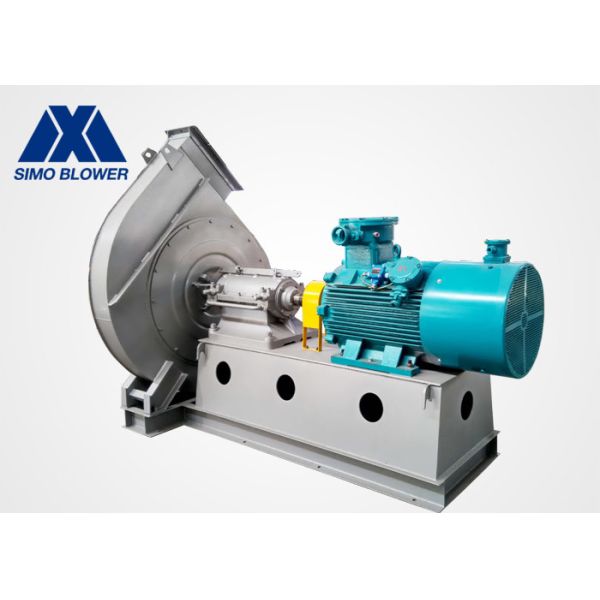

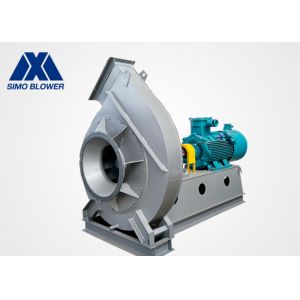

Q235 Anti-Explosion Smoke Exhaust High Temperature Centrifugal
Blower Fan
Introduction
The 6-11 series have the characteristics of high efficiency, flat
performance curve, wear resistance, and work stability.
It has excellent performance and can output high pressure.
It can be used to transport normal temperature or high temperature
non-flammable gases, particles, powder, debris, fibrous materials
etc.
The fans are commonly used in large-scale industrial systems such
as large dust removal systems, industrial desulfurization and
denitrification, large industrial boiler systems, large industrial
rotary kilns and calcining kiln systems, and mineral powder
sintering (sintering machines) and so on.
Ultrasonic flaw detection on the welding seam and main spindle of
the impeller to ensure that there are no welding defects or
material defects and ensure the strength.The Q235 Anti-Explosion Smoke Exhaust High Temperature Centrifugal
Blower Fan impeller is subjected to a high standard of dynamic balancing
adjusting to ensure stable operation of the fan.Test assembly after
production is completed to ensure that there is no interference
between the components.Provide on-site arrangement and guidance
services.
Application
The centrifugal fans are commonly used in large-scale industrial
systems such as large dust removal systems, industrial
desulfurization and denitrification, large industrial boiler
systems, large industrial rotary kilns and calcining kiln systems,
and mineral powder sintering (sintering machines) and so on.
Technical data
| Centrifugal Fan series | Centrifugal Fan model | Rotation Speed
(r/min) | Total Pressure
(Pa) | Air Capacity
(m3/h) | Power
(kW) |
|---|
| 6-11 | 14D | 1450 | 5435～7086 | 22889～41542 | 90～110 |
| 15D | 1450 | 6240～8134 | 28153～51095 | 110～160 |
| 16D | 1450 | 7099～9255 | 34167～62011 | 160～220 |
| 17D | 1450 | 8014～10448 | 40892～74379 | 220～280 |
| 18D | 1450 | 8986～11713 | 48648～88292 | 280～400 |
| 19D | 1450 | 10012～13051 | 57215～103840 | 400～500 |
| 20D | 1450 | 11093～14461 | 66733～121114 | 450～630 |
Advantages and Features
1. Q235 Anti-Explosion Smoke Exhaust High Temperature Centrifugal
Blower Fan can output higher outlet pressure and can work in high temperature
medium, suitable for any need to transport high pressure & high
temperature gas industrial occasions.
2. According to customer performance requirements customized
design, and optimized by CFD technology, the energy consumption is
lower than similar models.
3. For the material of impeller and main spindle, we will choose
high-strength carbon steel, low-alloy steel, high-temperature alloy
steel, high temperature high-strength alloy steel for different
working conditions temperature and working speed, so that the
impeller and main spindle at high temperature still maintain
reliable strength.
4. For dusty gas, we can meet all kinds of working conditions from
small amount of dust to large amount of dust. After special
treatment, the hardness of blade surface can reach HRC60~70, which
can extend the life of the impeller by more than 3 times.
5. The moderate bonding between the components is tight, and the
sealing performance is good, ensuring that the output pressure will
not be reduced.
6. After annealed treatment, the internal stress of the structure
generated during welding can be completely eliminated to ensure
that the impeller will not creepage and crack.
