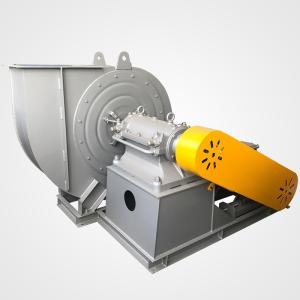

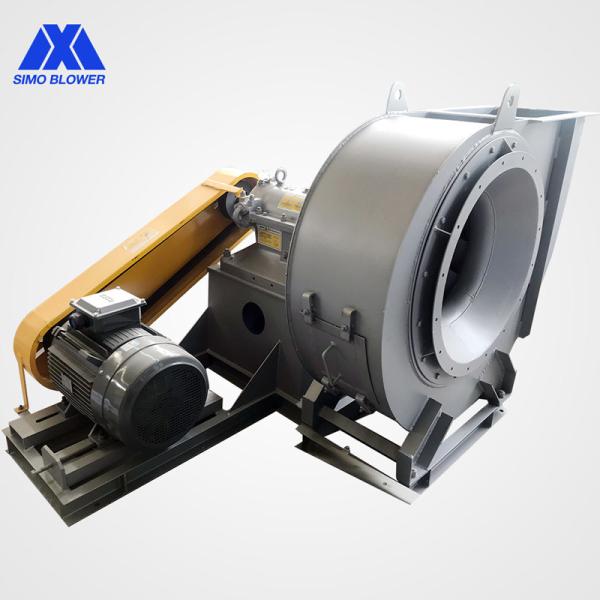

Single Inlet Medium Pressure Building Ventilation Stainless Steel
Blower
Introduction Of Centrifugal Fan
The 5-12 series centrifugal fan is an enhanced version of the 5-11
series medium pressure centrifugal fan.
It has a larger output flow than the 5-11 series. It is also used
to transport a variety of common gases and hard materials in the
industrial field, the application object is exactly the same as
5-11 series fan.
The bearing cooling method selects a low-cost water-cooling method
or an oil-cooling method with better heat dissipation depending on
the gas temperature and the conditions of the use environment. For
extremely high temperature operating conditions, an electronic
cooler can also be added to absolutely protect the reliable
operation of the fan system.
Technical data
| series | model | Rotation Speed
(r/min) | Total Pressure
(Pa) | Air Capacity
(m³/h) | Power
(kW) |
|---|
| 5-12 | 4C | 2500～3550 | 742～2221 | 2065～5564 | 2.2～5.5 |
| 5C | 2240～3150 | 964～2819 | 3772～9851 | 4～11 |
| 6.3C | 2000～2800 | 1221～3545 | 6737～17516 | 7.5～22 |
| 8C | 1400～2000 | 1100～3323 | 9656～25619 | 11～30 |
| 10C | 1250～1800 | 1419～4483 | 15451～44634 | 22～75 |
| 12.5C | 1000～1400 | 2145～4234 | 24143～67803 | 37～110 |
Product Features
This can use different speeds to meet the requirements of various
dust collectors in the same tonnage boiler, combined redundant fan
series and machine number.
It is used to transport various common gases and hard materials in
industrial production, and is suitable for various harsh conditions
such as high temperature, wear and corrosion.
It is capable of outputting a higher outlet pressure while
providing more gas flow with lower noise. Stable operation at
higher media temperatures.
The adjustment door can be used to flexibly adjust the pressure and
flow of the fan during operation. It can also be equipped with a
variable frequency motor to adjust the pressure and flow of the fan
by changing the speed.
FAQ
1, Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2, Q: How long is the delivery time?
A : A:5-35 days.
3, Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4, Q: What’s your warranty?
A: 1 year.
5, Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
