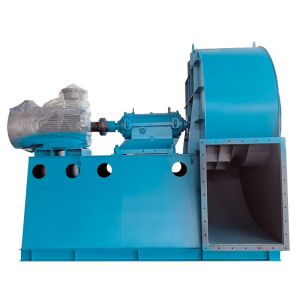

China Centrifugal Fan Manufacturers Can Customize Large Flow and
Low Noise Kiln Blowers, Induced Draft Fans, Smoke Exhaust Fans
Detail introduction:
This customized large flow, low noise kiln blower is designed for
efficient smoke exhaust, widely used in kiln systems for flue gas
emission. The fan adopts advanced design technology to provide
powerful airflow while maintaining low noise levels, ensuring that
the kiln system operates efficiently without excessive noise. By
precisely adjusting the airflow, it enhances air circulation within
the kiln, improving combustion efficiency and ensuring that exhaust
gas emissions meet environmental standards.
Made from high-temperature and corrosion-resistant materials, the
fan is built to withstand the extreme temperatures and harsh
conditions found in kiln environments, ensuring stable long-term
operation. Whether for new kiln projects or equipment upgrades,
this customized fan provides an excellent smoke treatment solution
for kilns.
Typical applications include: building ventilation, mine
ventilation, smoke evacuation, drying, clinker cooling, transport
of gas, transport of lightweight materials, blasting and drafting
of industrial boiler systems, and supply of air to kiln
systems/incinerator systems and induced air, air purification
equipment, industrial dust collector systems, etc.
Product Features
Technical specifications:
The following datas are only part of performance of our product.
If you can't find the datas you need, pls send us your performance
requirements
we will provide you customized design service.
| Series no. | 4-10 series | Feature selection |
| Normal | anti-corrosion | wear-resisting | High temperature | anti-explosion | Remarks |
| Performance | Impeller diameter | 800-2950mm | |
| Rotation speed | 580-1450r/min | |
| Pressure range | 553-7218Pa | |
| Flow range | 15229-810000m³/h | |
| Structure | Blade type | Backward, Straight, Aerofoil type | |
| Impeller support | SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet),
Overhung type | |
| Lubrication method | Oil bath lubrication, grease lubrication, lubrication oil station | Can be specified |
| Cooling method | Air cooling, Water cooling, Oil cooling | Can be specified |
| Driven mode | Direct driven, Coupling driven, Belt driven | Can be specified |
| Gas composition | Gas temperature | Normal | Customer request | Customer request | ≥250 | Customer request | |
| gas characteristic | Clean gas | Corrosive gas | Particulate dust | High temperature gas | Flammable gas, explosive gas | |
| System configuration | Motor brand | Chinese famous brand, ABB, Siemens, WEG etc | Can be specified |
| Impeller | High quality carbon steel | FRP, Stainless steel, Rubber Lining | Wear-resistant layer or wear-resistant liner, ceramic patch | High temperature high quality alloy steel | FRP, Aluminum alloy | Can be specified |
| Air inlet cone | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified |
| Casing | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified |
| Air damper | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified |
| Main shaft | High strength carbon steel, Alloy structural steel | Can be specified |
| Bearing | ZWZ, SKF, FAG, NSK | Can be specified |
| Bearing housing | Cast iron | |
| Foundation bolts | GB799-1988 | |
| Option parts | System base frame, Protective screening, Silencer, Inlet & Outlet
flexible connections, Inlet & Outlet counter flange, Air damper,
Electric actuator, Shock absorber, Diaphragm coupling, Fluid
coupling, Motor rain cover, Temperature sensor, Vibration sensor,
Soft starter, Inverter, Special Electrical Motor, System monitoring
Instrument. |
Production Process
We are strict with every step about the industrial centrifugal fan
and axial fan.
Related products
Company Profile
Pursue excellent quality, make perfect product!
Cooperating customers
Packaging & Shipping
Delivery detail: 35 days after receive your payment
FAQ&Contact us
1. How many years your company has experience in centrifugal fan
machines?
Answers: Xinxiang SIMO BLOWER Co.,Ltd was founded in 1955. We have
more than 70 years experience on centrifugal fan. We are
manufacturer. Our product has been delivered to more than 40
countries and cities.
2. How about your company's pre-sales service and after-sales
service?
Answers: before our cooperation, we have the professional technical
team to help you make the technical solution according to your
working condition. To make sure the centrifugal fan efficiency
operation. And also welcome to visit SIMO BLOWER to see the
products production process and quality monitoring system. After
sales service, we will offer 12 months' repairing service, and
provide lifelong follow-up services. Besides, our engineers are
available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: all of our product are produced by our company will pass
ISO 9001-2008 and CE.
